a compact PTZ camera for superior meetings

Download Guide

Specs & Details


  • (hd)Full HD 1920x1080
  • (zoom_in)PTZ with 20x zoom
  • (view_carousel)77° field of view
  • (control_camera)Control protocol: VISCA, PELCO P/D
  • (touch_app)Control interface: RS485, RS232, IR UVC
  • (compress)Multi codec: H.264, H.265, MJPG
  • (settings_remote)Remote control w/ 10 camera presets
  • (usb)USB Plug & Play
  • (shield)3-year warranty

What's in the Box

Boom MIDI Camera: Full HD PTZ Conference Room Camera for Clear Video Conferencing

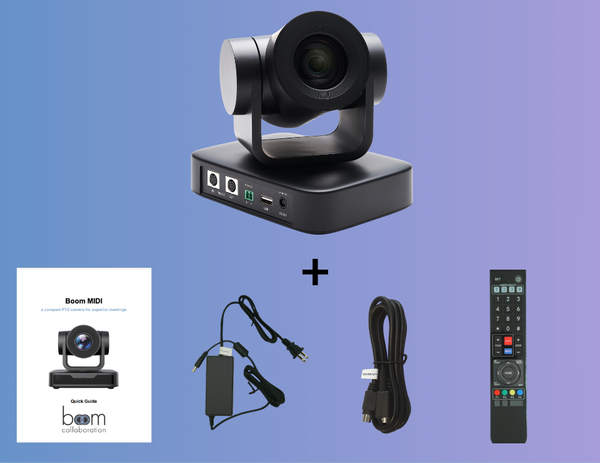

What's in the box

  • MIDI camera
  • IR remote control
  • USB Y 2.0 cable (USB A)
  • RS232 cable
  • Power supply
  • Quick guide


Length: 6.2in/102mm
Width: 4.4in/46mm
Height: 5.5in/30mm

Technical Specifications

  • Full HD 1920x1080 @30fps
  • Sensor: 1/2 .9 Panasonic CMOS image sensor
  • Pixels: 2.07MP, 16:9
  • View angle: 77°
  • PTZ parameters:
  • Pan: ±170°
  • Tilt: ±30°
  • Zoom: 20x (10x optical)
  • Presets: 255 (10 with remote)
  • Focus: Auto, Manual, One Push
  • Video output: USB 2.0, RS232, RS422, RS485
  • Video compression: H.265, H.264, MJPG
  • Network protocol: VISCA, PELCO-P/D
  • Power: DC12V±10%, 1A(Max)
  • Temperature: 15°F +120°F(-10°C - +50°C)
  • Mounting: Tripod thread, wall & ceiling mount (optional)


Zoom, Microsoft Teams, Cisco Webex, Google Meet, Bluejeans, GoToMeetings, Skype and more

System Requirements

  • Windows 7, 8, 10 or later, Mac OS X, Linux
  • USB A port, RS232, RS422/RS485

Warranty Information

3-year Limited hardware warranty
Optional 5-year Boom Care plan
