Boom MAGNA

$1,199.00

a powerful camera for superior meetings

Download Guide

Take your video conferencing to the next level with Ultra HD 4K @ 60fps and 12x optical zoom. Enjoy superior image quality with Sony CMOS sensor and excellent low light optimization. Multiple video outputs, noise reduction, remote control and multi-codec IP streaming make the Boom MAGNA your go to camera for medium to large conference rooms. Anyone passionate about video collaboration needs this camera. Better meetings. Simply.

benefit_1_image

Picture perfect

Enjoy premium quality video with Ultra HD 4K @ 60fps and 26x zoom (12x optical) combined with leading auto focus technology and advanced ISP processing.

benefit_2_image

Next level collaboration

With control protocols for VISCA, Pelco-P/D through RS232 in and out control interface, the MAGNA easily integrates with your A/V control system or corporate network to deliver enterprise level video.

benefit_3_image

You've got options

The MAGNA is full of connectivity options. LAN, RS232, RS422/RS485, USB 3.0, and HDMI ensure you have the options required for any space.

Specs & Details

Overview

  • (4k)Ultra HD 4K @ 60fps
  • 82° field of view
  • PTZ with 12x optical zoom
  • (usb)USB 3.0, HDMI and LAN (PoE)
  • Sony CMOS sensor
  • Remote control for quick PTZ
  • PTZ Control: UVC, VISCA, Pelco-D/P,
  • Onvif via RS232, RS422/RS485, LAN
  • IP Streaming: H.265, H.264, RTSP, RTMP
  • (shield)3-year warranty

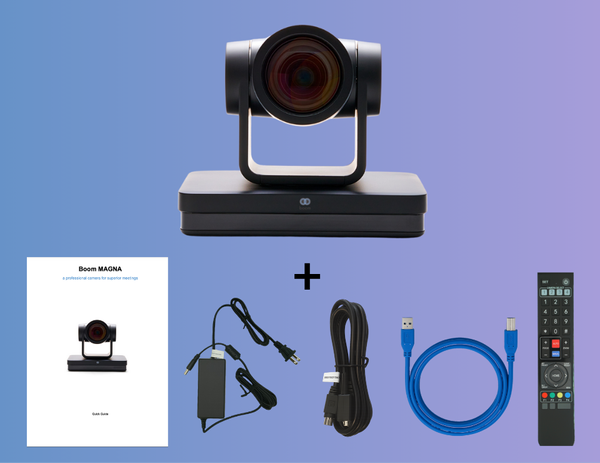

What's in the Box

Boom MAGNA: Empowering Meetings with High-Performance Camera Technology
  • Camera
  • power supply
  • RS232 cable
  • USB 3.0 cable
  • IR Remote
  • quick guide

Dimensions

Length: 7.13in/181mm
Width: 4.53in/115mm
Height: 5.87in/149mm

Technical Specifications

4K Ultra HD up to 3840 x 2160 @60fps
Sensor: 4K Sony CMOS 1/2.8in, F1.6 ~ F2.8±5%
Pixels 8.51MP, 16:9
View angle: 82°
PTZ Parameters:
Pan: ±170°
Tilt: -30°/+90°
Zoom: 12x optical
Presets: 255 (10 with remote)
Focus: Auto, Manual, One Push
Video output: USB 3.0, HDMI, LAN, RS232, RS422, RS485
Video compression: H.264, H.265, MJPEG, YUY2, NV12
Network protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA, Pelco P/D
Audio input: Double track 3.5mm linear input
Audio output: HDMI, LAN, USB 3.0
Input voltage: DC12V ±10%
Input current: <1A
Power: < 12W
Temperature: 15°F - +120°F (-10°C - +50°C)
Mounting: Tripod thread, wall & ceiling mount (optional)

Compatibility

Zoom, Teams, Webex, Meet, Bluejeans, GoToMeetings, Skype and more

System Requirements

  • Windows 7 or later 10
  • Mac OS 10.7 or later
  • Chrome OS Version 29.0.1547.70 or later
  • 2GB RAM or more needed for 1080p video streaming
  • 1GB for 720p streaming
  • USB-A port, HDMI port, LAN, RS232 or RS422/RS485

Warranty Information

3-year Limited hardware warranty
Optional 5-year Boom Care plan
