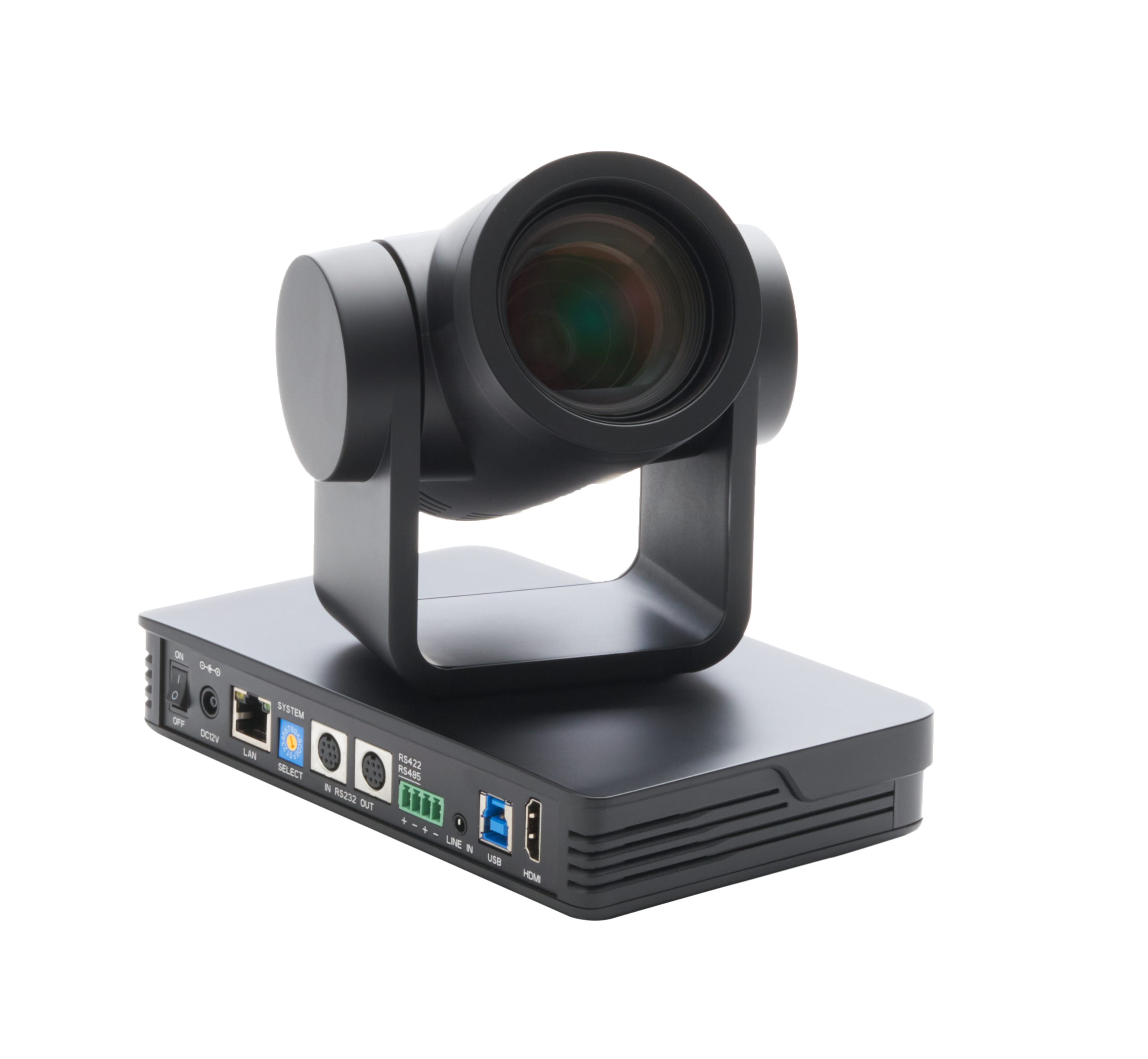

Take your video conferencing to the next level with Ultra HD 4K @ 60fps and 12x optical zoom. Enjoy superior image quality with Sony CMOS sensor and excellent low light optimization. Multiple video outputs, noise reduction, remote control and multi-codec IP streaming make the Boom MAGNA your go to camera for medium to large conference rooms. Anyone passionate about video collaboration needs this camera. Better meetings. Simply.
Picture perfect
Enjoy premium quality video with Ultra HD 4K @ 60fps and 26x zoom (12x optical) combined with leading auto focus technology and advanced ISP processing.
Next level collaboration
With control protocols for VISCA, Pelco-P/D through RS232 in and out control interface, the MAGNA easily integrates with your A/V control system or corporate network to deliver enterprise level video.
You've got options
The MAGNA is full of connectivity options. LAN, RS232, RS422/RS485, USB 3.0, and HDMI ensure you have the options required for any space.
Specs & Details
Overview
- (4k)Ultra HD 4K @ 60fps
- 82° field of view
- PTZ with 12x optical zoom
- (usb)USB 3.0, HDMI and LAN (PoE)
- Sony CMOS sensor
- Remote control for quick PTZ
- PTZ Control: UVC, VISCA, Pelco-D/P,
- Onvif via RS232, RS422/RS485, LAN
- IP Streaming: H.265, H.264, RTSP, RTMP
- (shield)3-year warranty
Downloads
What's in the Box
- Camera
- power supply
- RS232 cable
- USB 3.0 cable
- IR Remote
- quick guide
Dimensions
Length: 7.13in/181mm
Width: 4.53in/115mm
Height: 5.87in/149mm
Technical Specifications
4K Ultra HD up to 3840 x 2160 @60fps
Sensor: 4K Sony CMOS 1/2.8in, F1.6 ～ F2.8±5%
Pixels 8.51MP, 16:9
View angle: 82°
PTZ Parameters:
Pan: ±170°
Tilt: -30°/+90°
Zoom: 12x optical
Presets: 255 (10 with remote)
Focus: Auto, Manual, One Push
Video output: USB 3.0, HDMI, LAN, RS232, RS422, RS485
Video compression: H.264, H.265, MJPEG, YUY2, NV12
Network protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA, Pelco P/D
Audio input: Double track 3.5mm linear input
Audio output: HDMI, LAN, USB 3.0
Input voltage: DC12V ±10%
Input current: <1A
Power: < 12W
Temperature: 15°F - +120°F (-10°C - +50°C)
Mounting: Tripod thread, wall & ceiling mount (optional)
Compatibility
Zoom, Teams, Webex, Meet, Bluejeans, GoToMeetings, Skype and more
System Requirements
- Windows 7 or later 10
- Mac OS 10.7 or later
- Chrome OS Version 29.0.1547.70 or later
- 2GB RAM or more needed for 1080p video streaming
- 1GB for 720p streaming
- USB-A port, HDMI port, LAN, RS232 or RS422/RS485
Warranty Information
3-year Limited hardware warranty
Optional 5-year Boom Care plan
