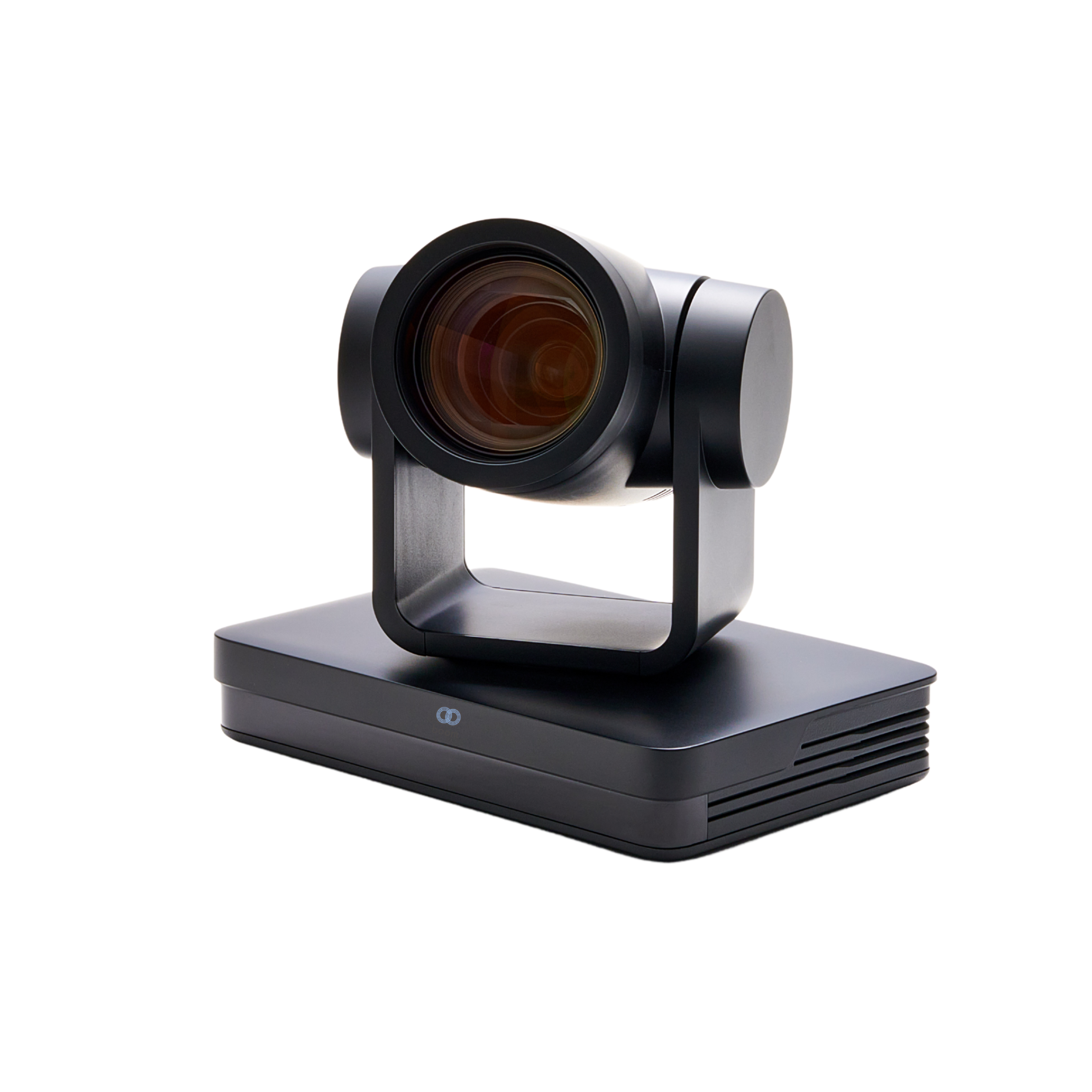

Boom MAGNA Pro

$1,399.00

intelligence and power combined

Download Guide

Upgrade your video conferencing experience with MAGNA Pro to level up your meeting and live events with Ultra HD 4K at 30 fps, intelligent people tracking, and 27x zoom. Sony CMOS sensor and advanced focus technology guarantee superior image quality while multiple video outputs, allow for seamless integration with A/V control systems and live streaming events, delivering enterprise-level video for any space. With extensive connectivity options and superior video quality, MAGNA Pro enhances your collaboration or event space, making meetings better, simply.

benefit_1_image

Intelligence is key

With AI real-time tracking, zone-tracking, or full manual control, MAGNA Pro offers a fully hands-on or hands-off experience for any live event or meeting.

benefit_2_image

Packed with connectivity

The MAGNA Pro is full of connectivity options. LAN, RS232, RS422/RS485, USB 3.0, SDI and HDMI ensure you have the options needed for any meeting, broadcast or livestream.

benefit_3_image

Next level collaboration

With control protocols for VISCA, IP VISCA, RTSP, RTMP, RTP multi-broadcast,Pelco-P/D , MAGNA Pro easily integrates with your A/V control system or corporate network to deliver enterprise level video.

Specs & Details

Overview

  • Ultra HD 4K at 30 fps

  • 80° field of view

  • AI People tracking

  • PTZ with 27x zoom

  • USB 3.0, HDMI, LAN and SDI

  • Sony CMOS sensor

  • Remote control with 10 presets for quick PTZ

  • PTZ control via IP VISCA, VISCA, Pelco- D/P, Sony

  • VISCA

  • IP Streaming: H.264, RTSP, RTMP

  • 3-year warranty

What's in the Box

Contents of the box: camera, power supply, RS232 cable, USB 3.0 cable, IR remote control, and quick guide, all arranged for easy setup and convenience.
  • Camera

  • Power supply

  • RS232 cable

  • USB 3.0 cable

  • IR Remote

  • Quick guide

Dimensions

Length: 7.13in/181mm
Width: 4.53in/115mm
Height: 5.87in/149mm

Technical Specifications

4K Ultra HD: 4K at 30 fps over HDMI, USB 3.0 and IP; 3G-SDI up to 1080p60
Image sensor: 4K Sony CMOS sensor (1/2.8in)
View angle: 80°
PTZ parameters: Pan: : ±170° Tilt: -30°/+90°
Zoom: 27x | 12x optical
Presets: 255 (10 with remote)
Resolution: 8.51 MP, 16:9
Focus: Auto, manual, one push
Output/Input Video output: HDMI, SDI, USB 3.0, LAN, USB dual-stream
Video codec: LAN: H.265, H.264 USB 3.0: H.265, H.264, MJPEG, YUY2, NV12
Audio input: AAC, MP3, G.711A
Connectivity: LAN with PoE, SDI, RS232, RS422/RS485, USB 3.0, HDMI, audio input

Compatibility

Zoom, Teams, Webex, Meet, Bluejeans, GoToMeetings, Skype and more

System Requirements

  • Windows 7 or later

  • MacOS® 10.7 or later

  • Chrome™ OS Version 29.0.1547.70 and higher

  • 2 GB RAM or more needed for 1080p video streaming

  • 1 GB is typically needed for streaming 720p

  • USB-A port

Warranty Information

3-year Limited hardware warranty
Optional 5-year Boom Care plan
