The Boom ZYGO is a versatile easy connect hub that boosts productivity by supporting up to three 4K displays. It features legacy display ports (HDMI 2.0 and DP 1.2) for a maximum resolution of 3 x 4K60, perfect for video conferencing, presentations, media creation, and more. The USB-C uplink provides 96W of power to charge your laptop, while the USB-C downlink offers 20W for charging accessories or a smartphone. With a 1GbE LAN port, you get fast 1000Mbps internet connectivity for efficient multitasking. The horizontal layout ensures easy cable management and convenient dock placement on your desktop.


Ease of Use: Connect and charge with just one cable, simplifying control in your conference room or meeting space.

Triple 4K60 Display: Support up to three 4K60 resolution screens with legacy HDMI 2.0 and DP 1.2 ports, enhancing your visual experience.

Cut the Clutter: Charge your laptop with 96W via USB-C and use an additional 20W USB-C port for peripherals, reducing the need for extra adapters.
Specs & Details
Overview

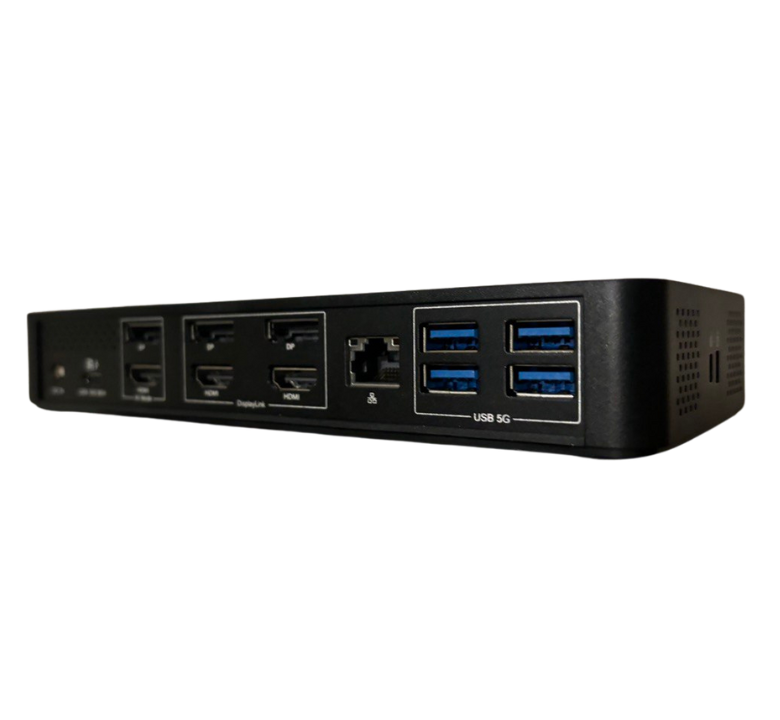

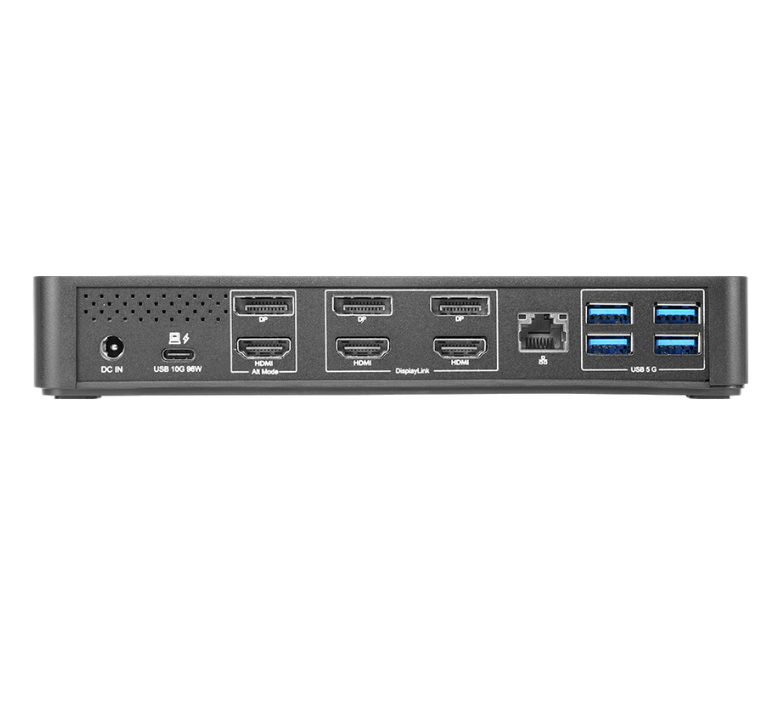

DC power port
Laptop port
Alt Mode ports
Display Link ports
Gigabit Ethernet port
USB 5G ports
Power button
Power indicator light
PD Indicator light, on when
powering connected laptop
Speaker jack
Mic jack
Downloads

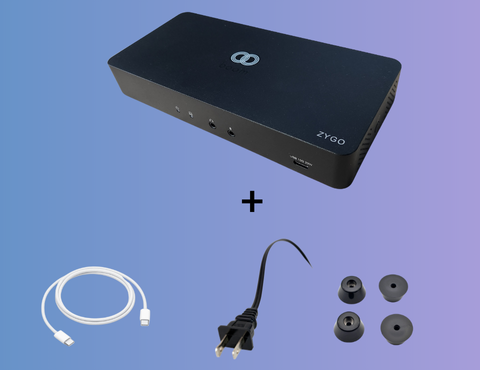

What's in the Box
-2.png)
-
Boom ZYGO hub
-
USB-C to USB-C cable
-
Universal power adapter
-
Mounting kit
-
Rubber feet x 4
Dimensions
8.1 x 1 x 3 in
20.57 x 2.54 x 7.62 cm
Technical Specifications
-
Max displays: 3x
-
Max resolution: 3x 4K60
-
Legacy display port: 3x DP1.2 | 3x HDMI 2.0
-
USB-C upstream: 1x USB-C 10G
-
USB-C downstream: 1x USB-C 10G, 4x USB-A 5G
-
Audio jack: 1x 3.5mm TRS speaker, 1x 3.5mm TRS mic
-
PD: PD96W (USB-C uplink), PD20W (USB-C downlink)
Compatibility
Windows, Mac and Chrome OS
System Requirements
Windows, Mac and Chrome OS
Warranty Information
3-year Limited hardware warranty
Optional 5-year Boom Care plan
